Thumbnail sketch
Full scale layout drawing

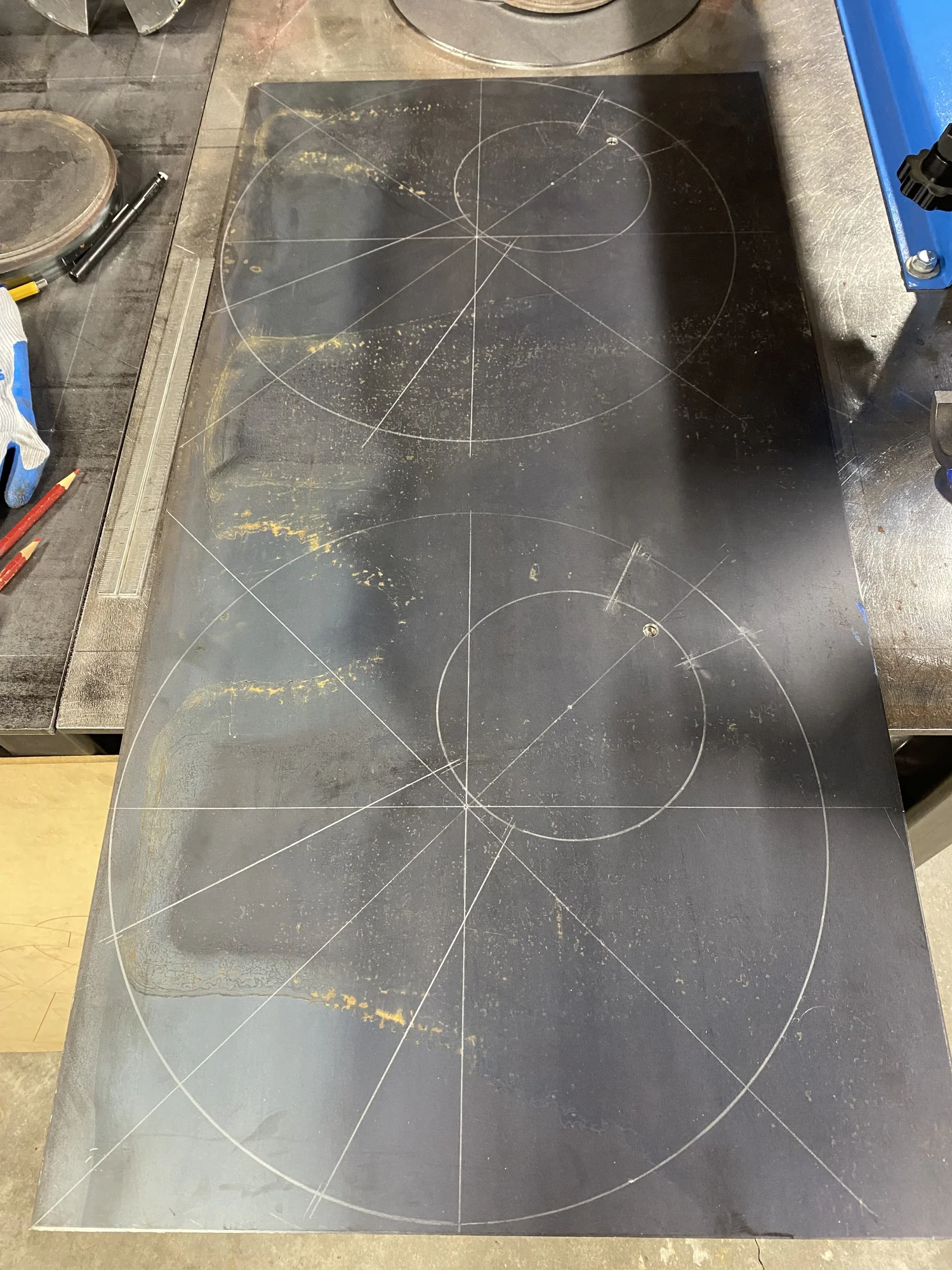

"Female" element plates ready to be cut

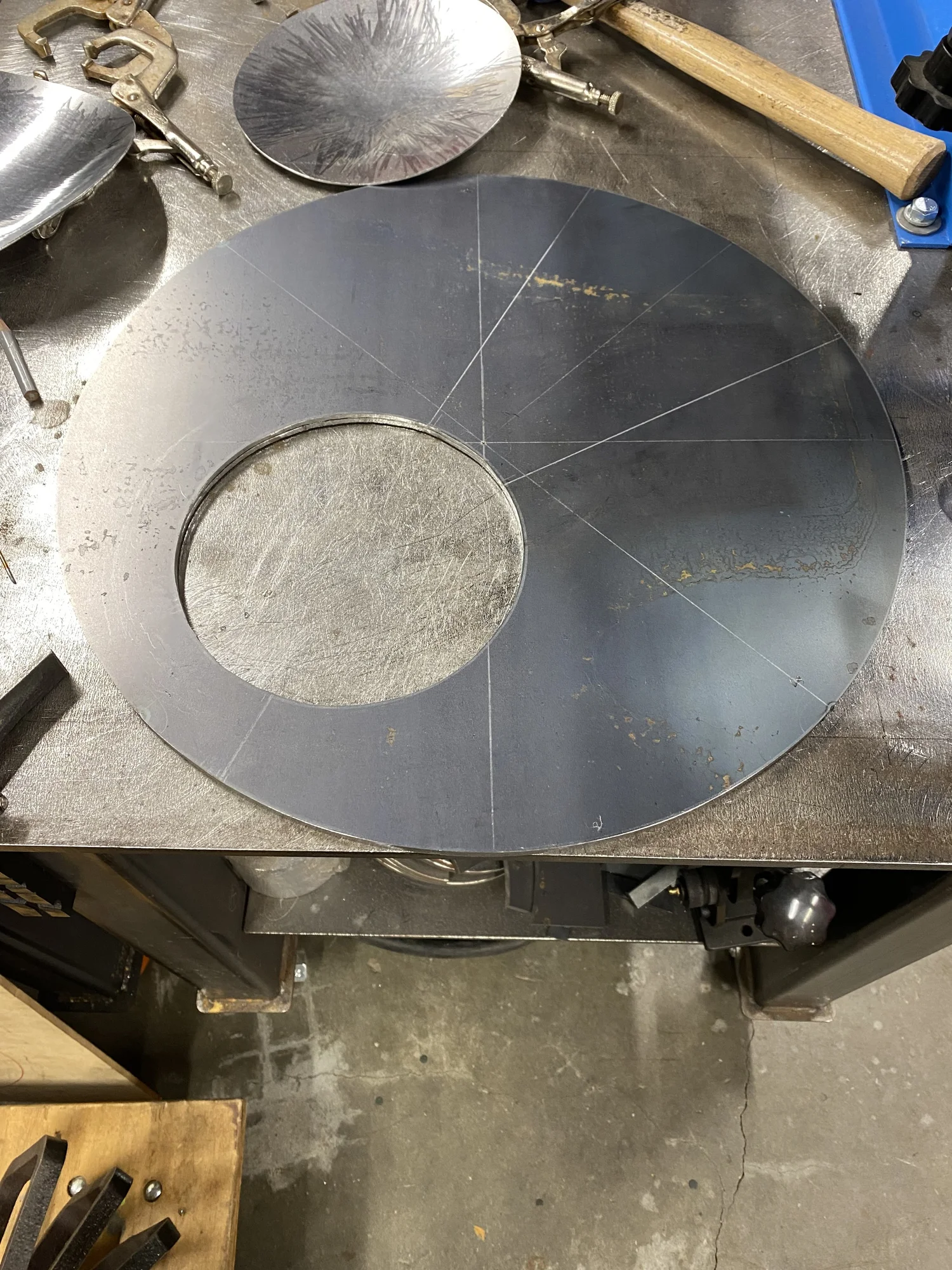

Outer circle shaped and plates tack-welded together for sanding out the rough sawn inner circle
Shaping the "male" element plates on the english wheel

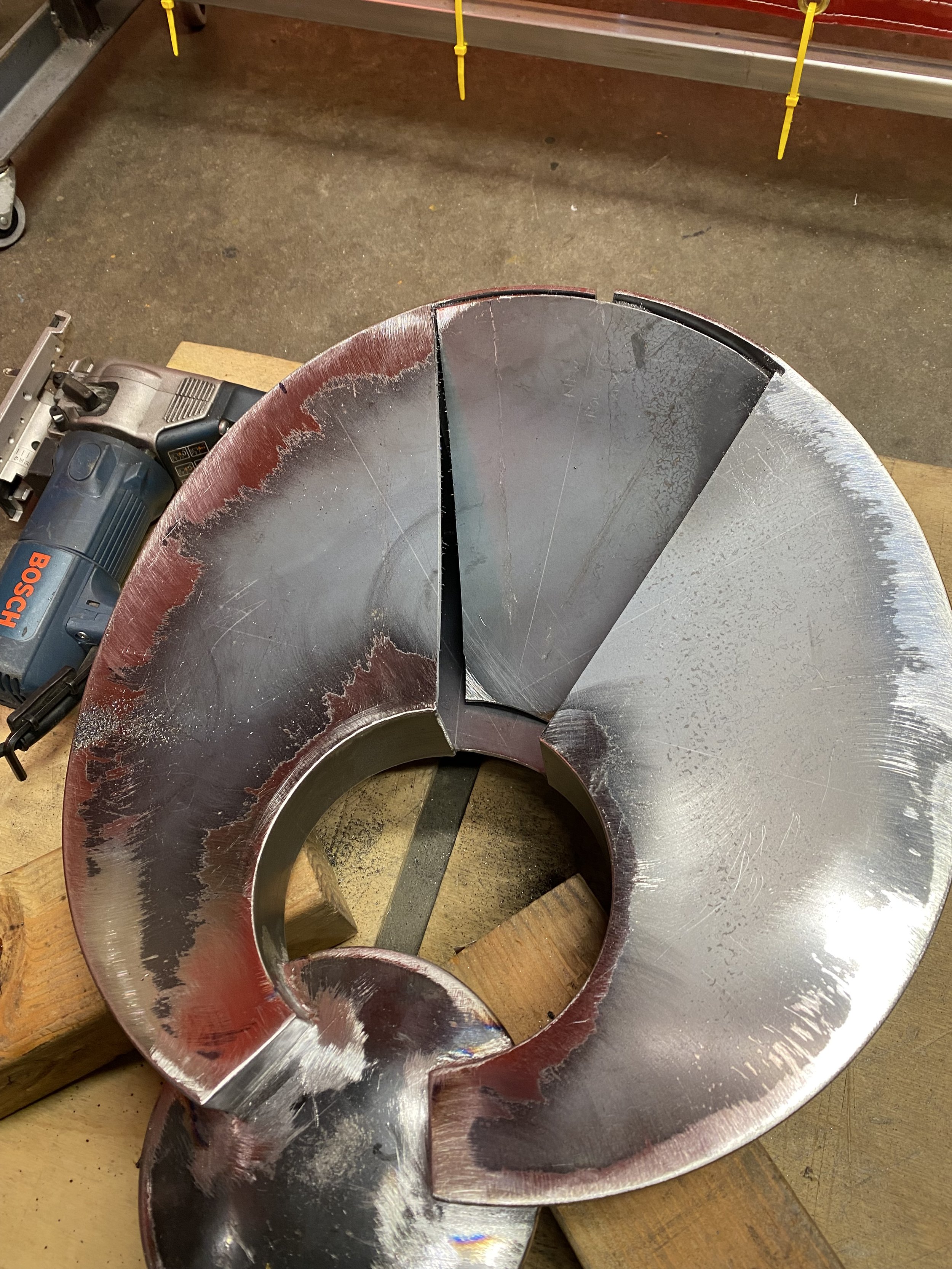

Sanding out the inner circle
Popping tack-welds to seperate the plates

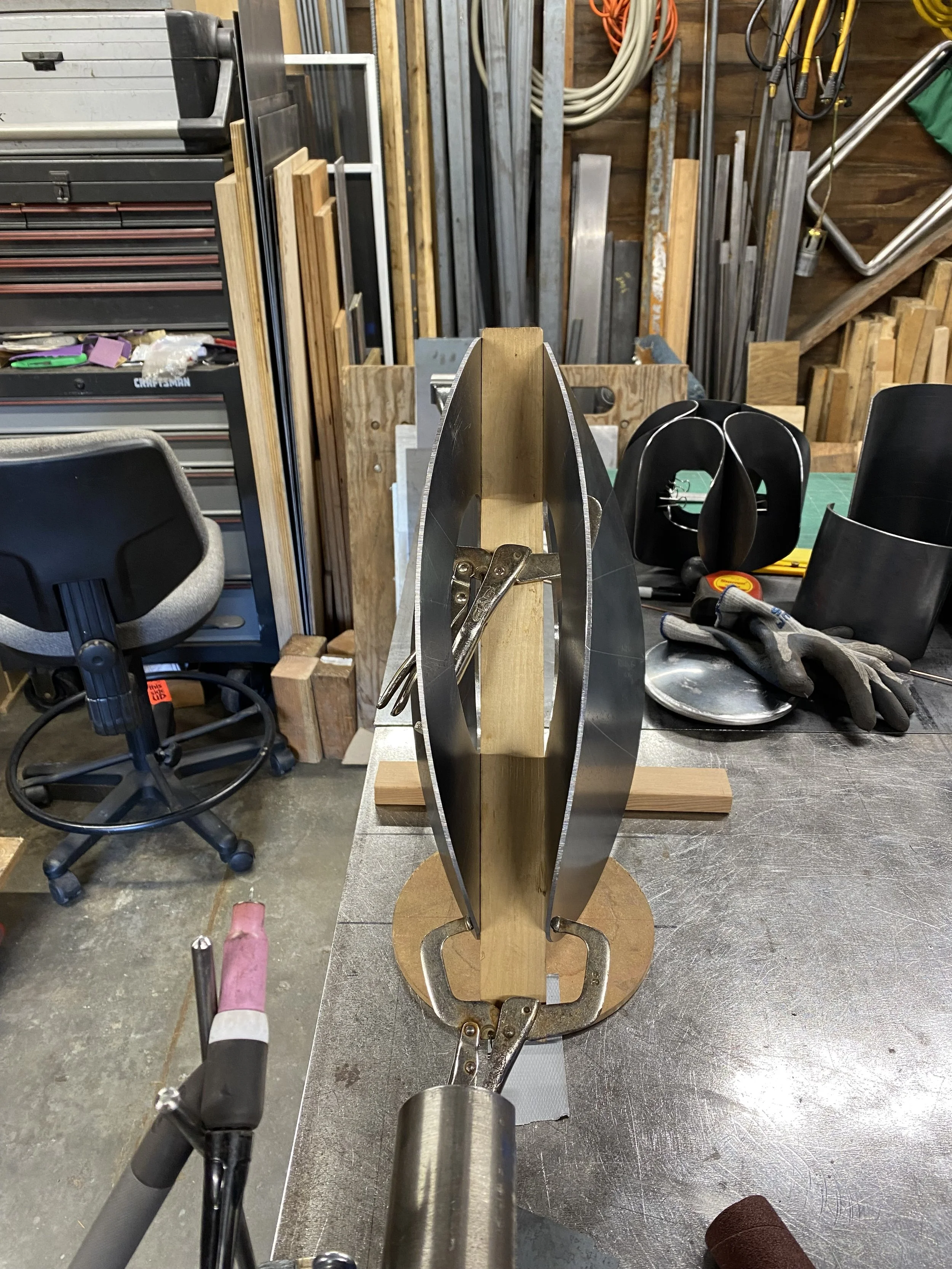

"Male element plates tacked to a 3/16" spacer

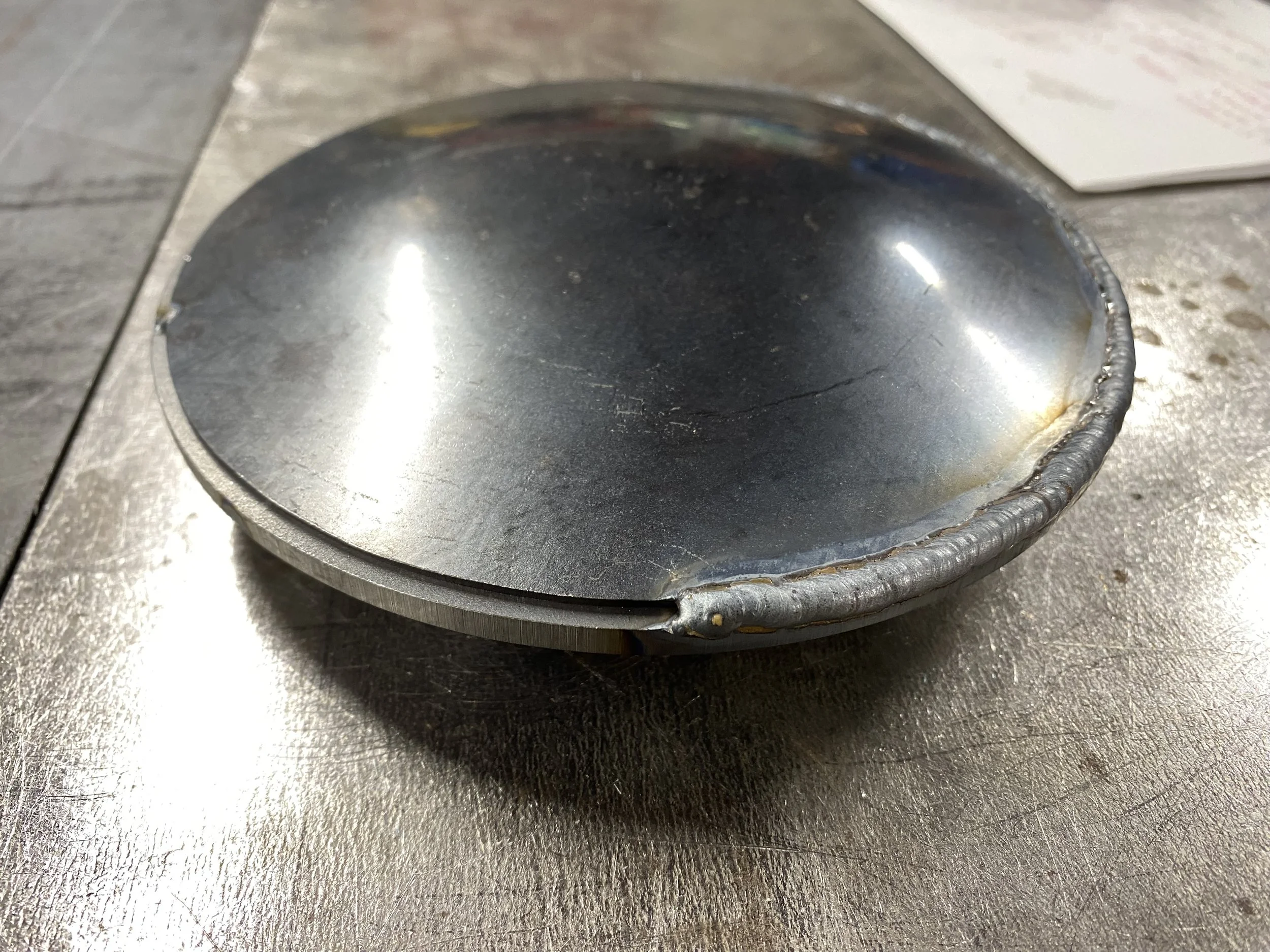

Weld up; low and slow
Welds sanded out
Hand finishing the edge
Rolling arcs into plates

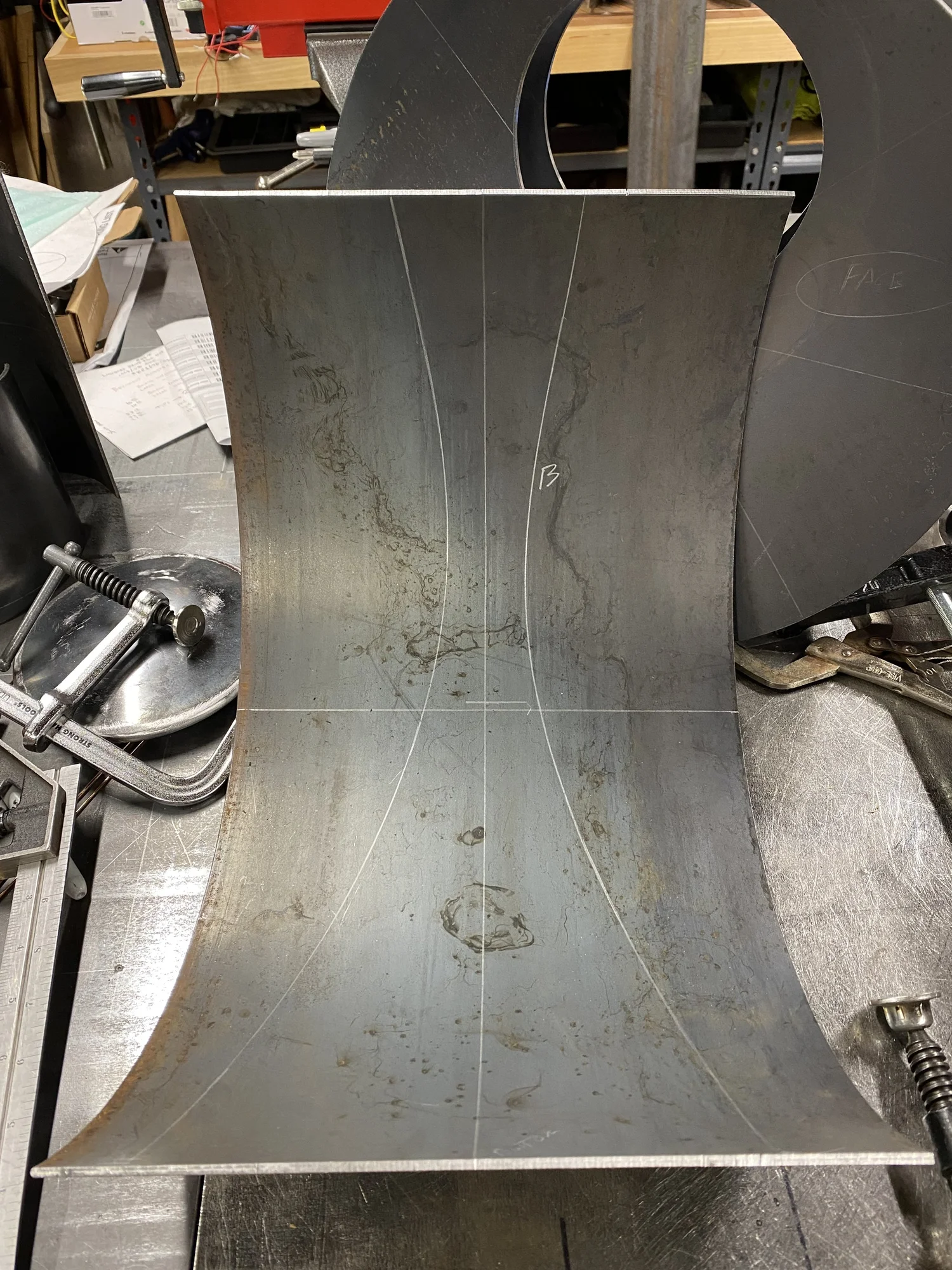

Rolling arcs into wrap panels
Rear elevation of "female" element
Side elevation of "female" element
Front elevation of "female" element
Scribing wrap panels for cutting and dry-fitting

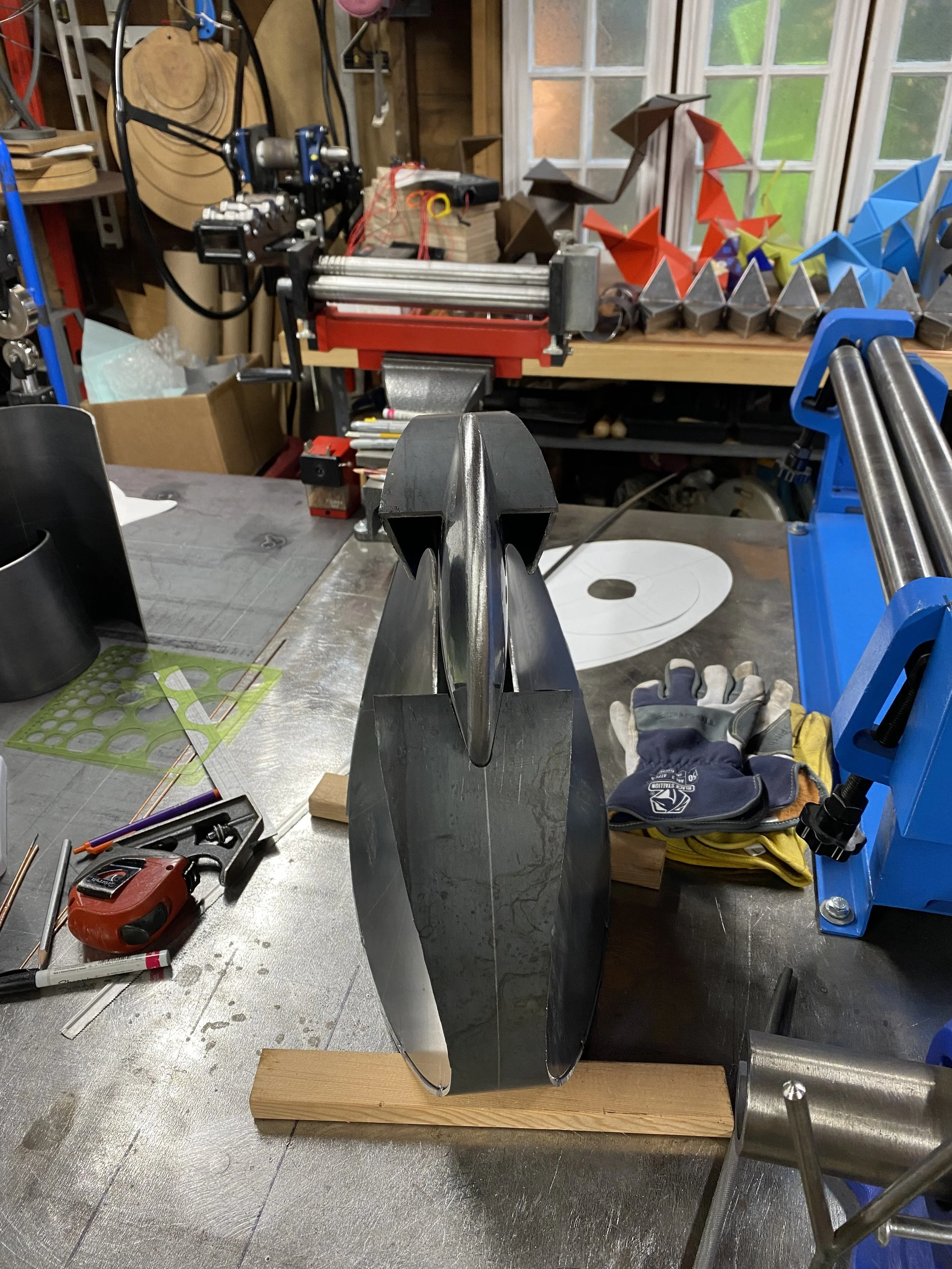

Wrap panels tack welded to "female" element
Filler rod "hinges" tack welded to wrap panels in the event that I have to spread the the "female" element to insert the "male" element
Upper keyhole cut
Making bird's mouth cuts to accept the "male" element

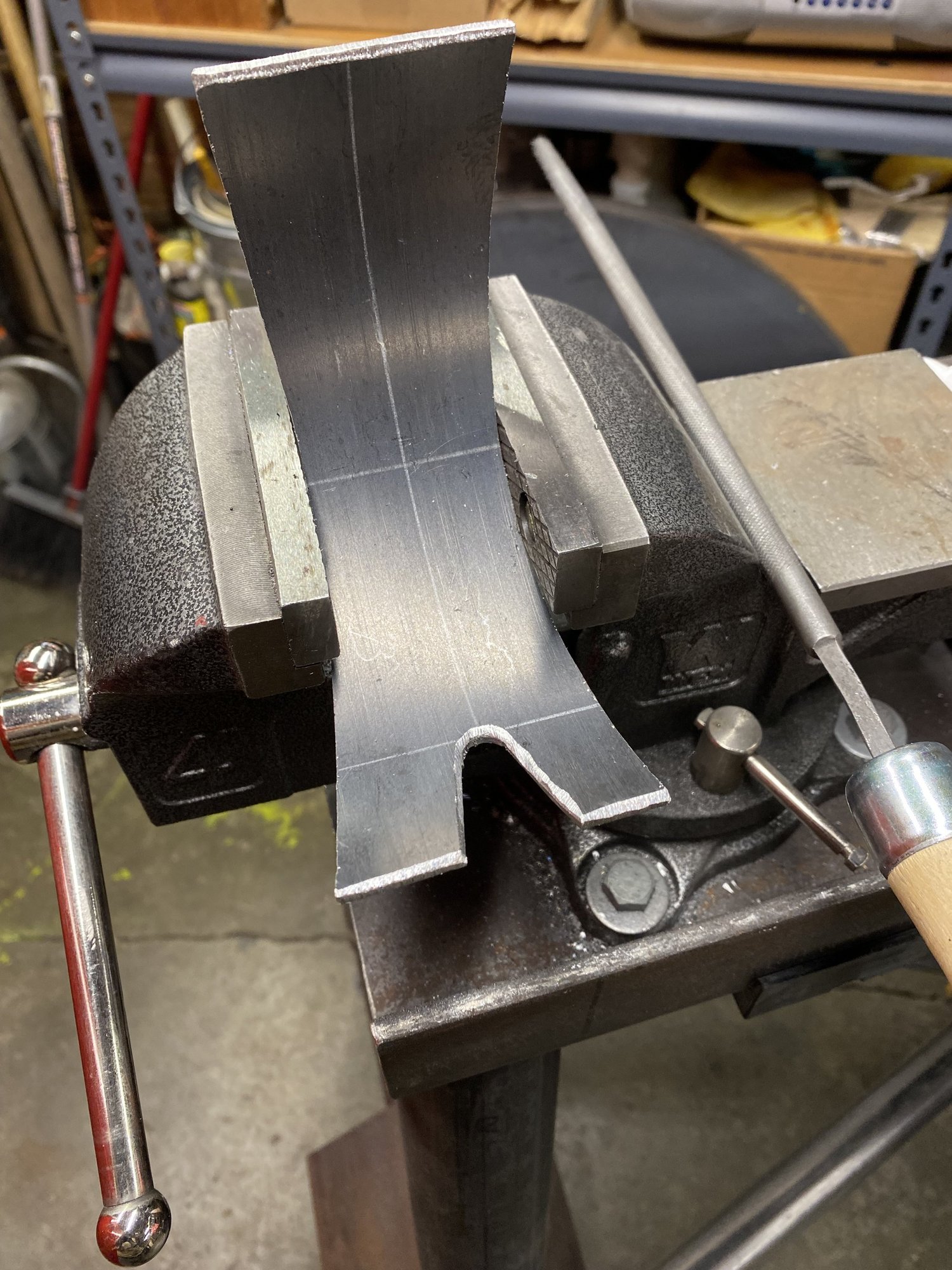

Making bird's mouth cuts in the inside wrap panels
Scribing, cutting, and dry-fitting the inside wrap panels
Prepping all to-be welded joints
Inside wrap panels tack-welded

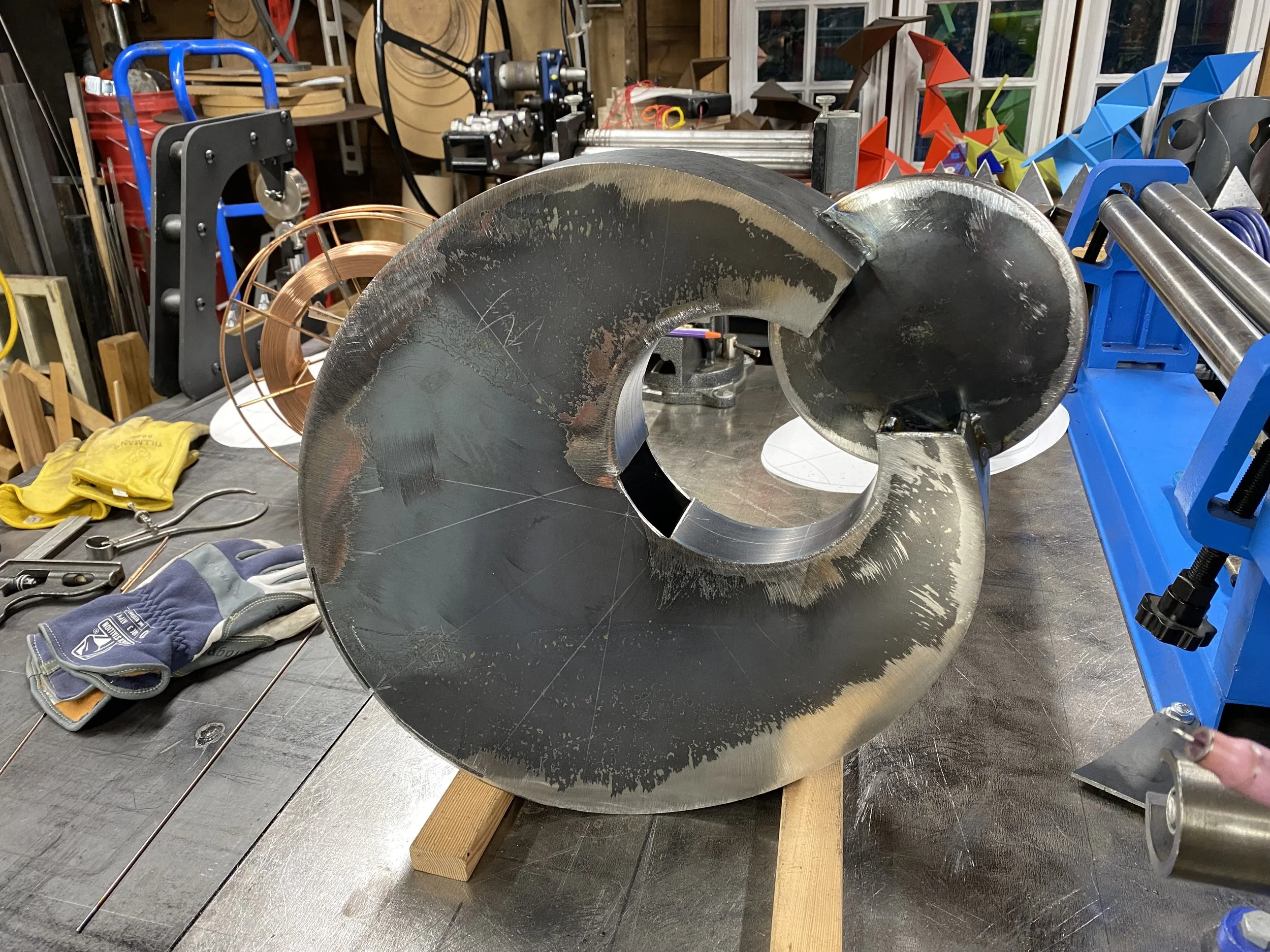

All wrap panels fully welded and sanded out

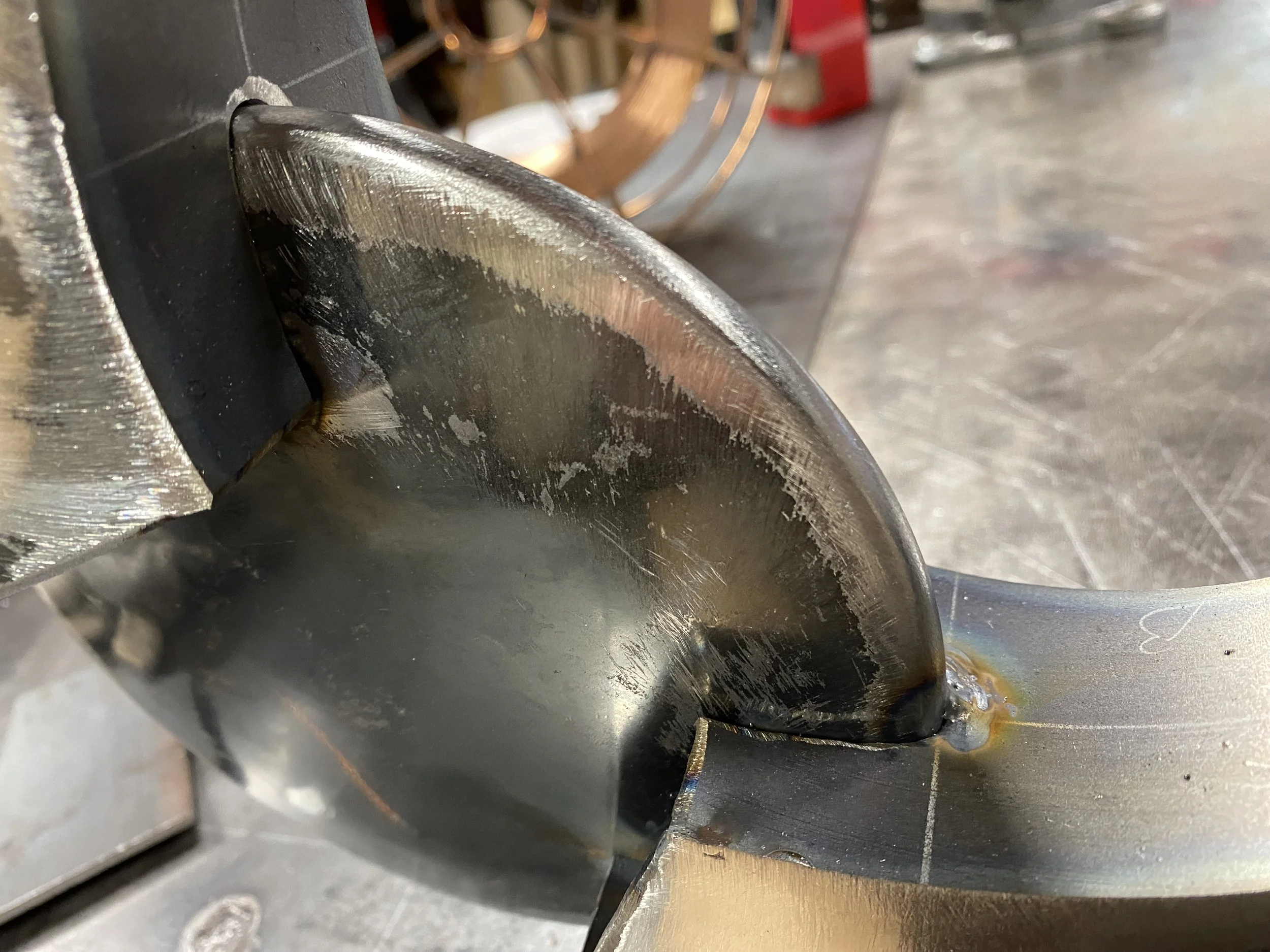

Welding the "male" into the "female"
Detailing out the welds
Upper keyhole end caps cut and prepped for welding
"male" welds fully detailed

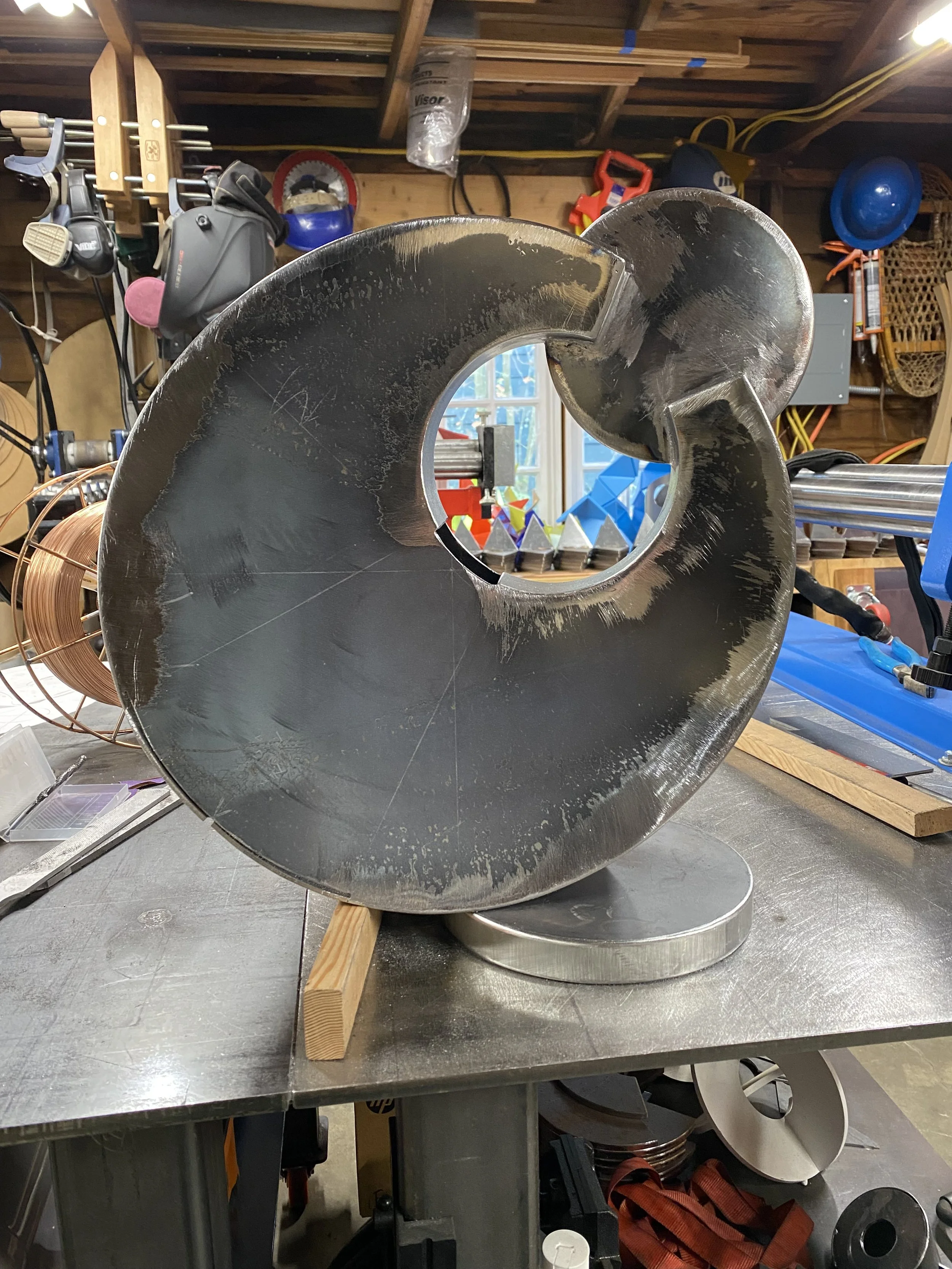

Mocking up Gametes on it's base for mounting dowel layout
Machining base for 5/8" mounting dowel
Cutting out lower keyhole
Shimming Gametes into position to layout hole to be drilled for mounting dowel
On the dowel pin and ready to be welded
Counter arc ready to be welded to stiffen the connection to the base
Final panel tacked into place
In the sandblaster
Patina applied
Six coats of semi-gloss varnish for the undercoat
First coat of matte varnish topcoat
