1/8 scale maquette presented to client
 Full scale layout drawings depicting plan, front, back, and side elevations
 Completed layout drawing

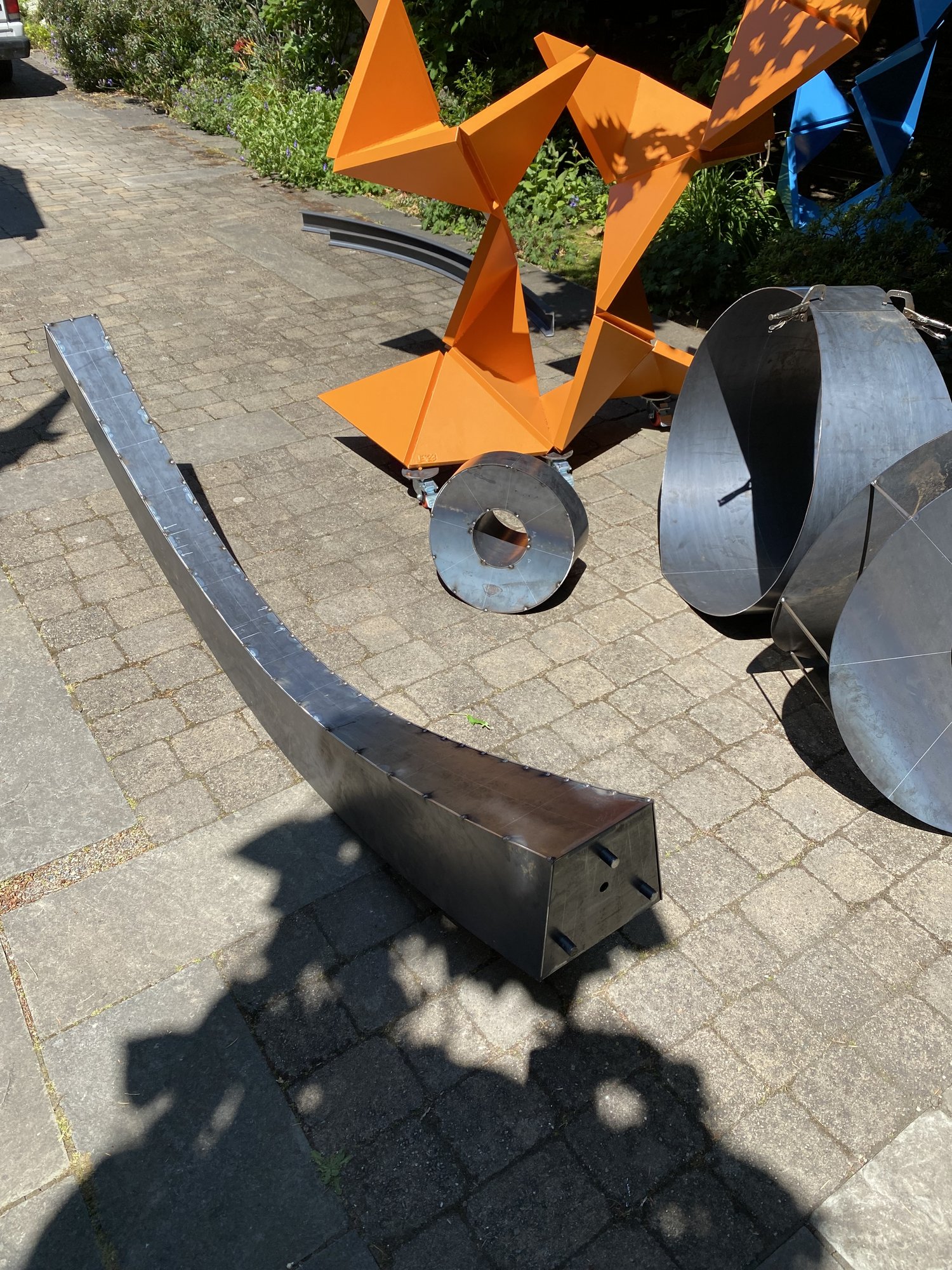

 Tail piece and channel arcs just back from being rolled
 Assembling the large drum element

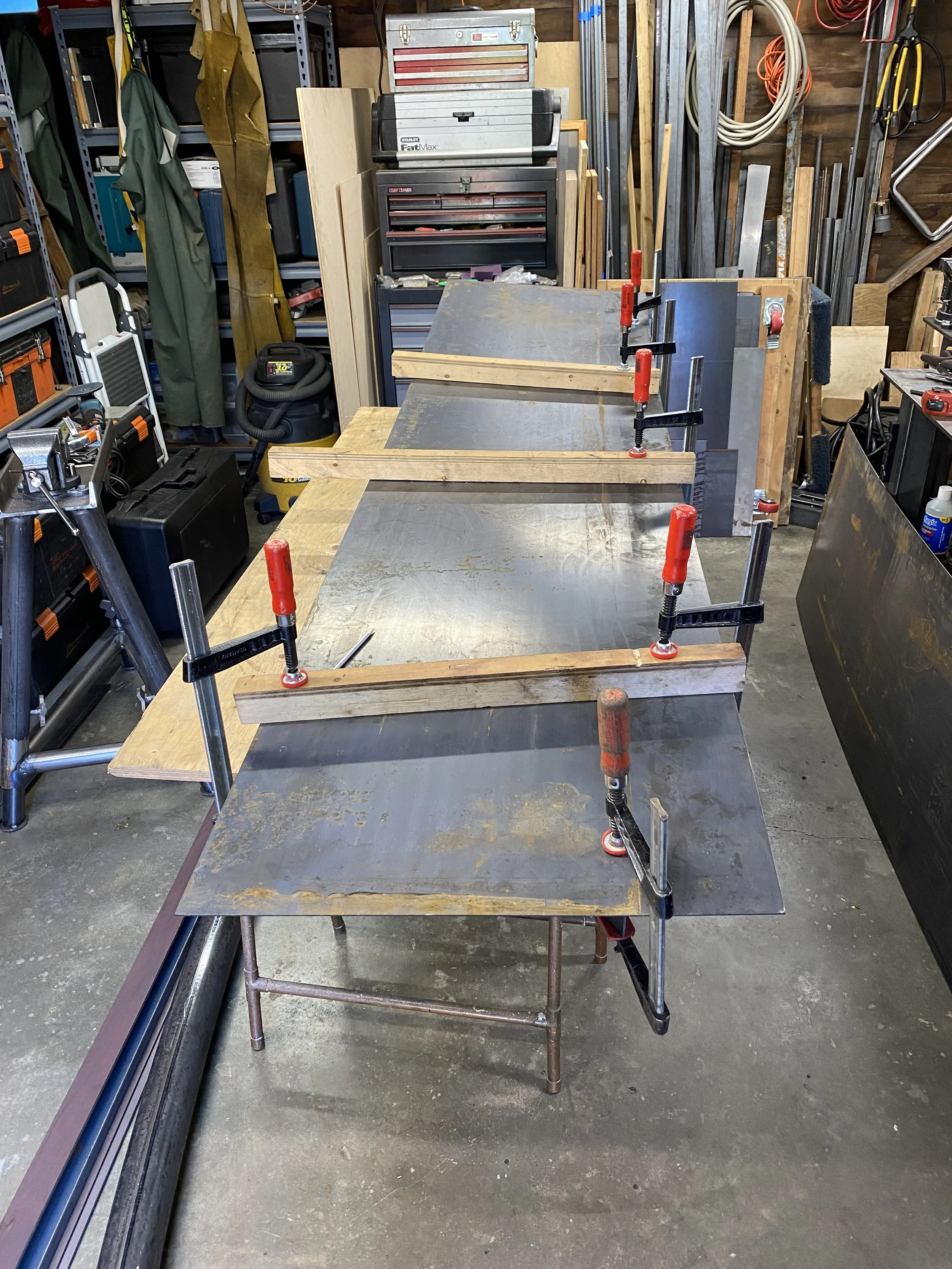

 Prepping front and back panels of the mast to draw final profiles on
 Transferring lineal dimensions along the front and back mast arcs to their respective elevations on layout drawing
 Transferring attenuated profiles to the flat mast panels before rolling them into their arcs
 Precutting drum wraps & sleeves, and mast panels prior to rolling into shapes
 Pile of parts
 Assembling the small drum element
 Rolling the large drum wrap

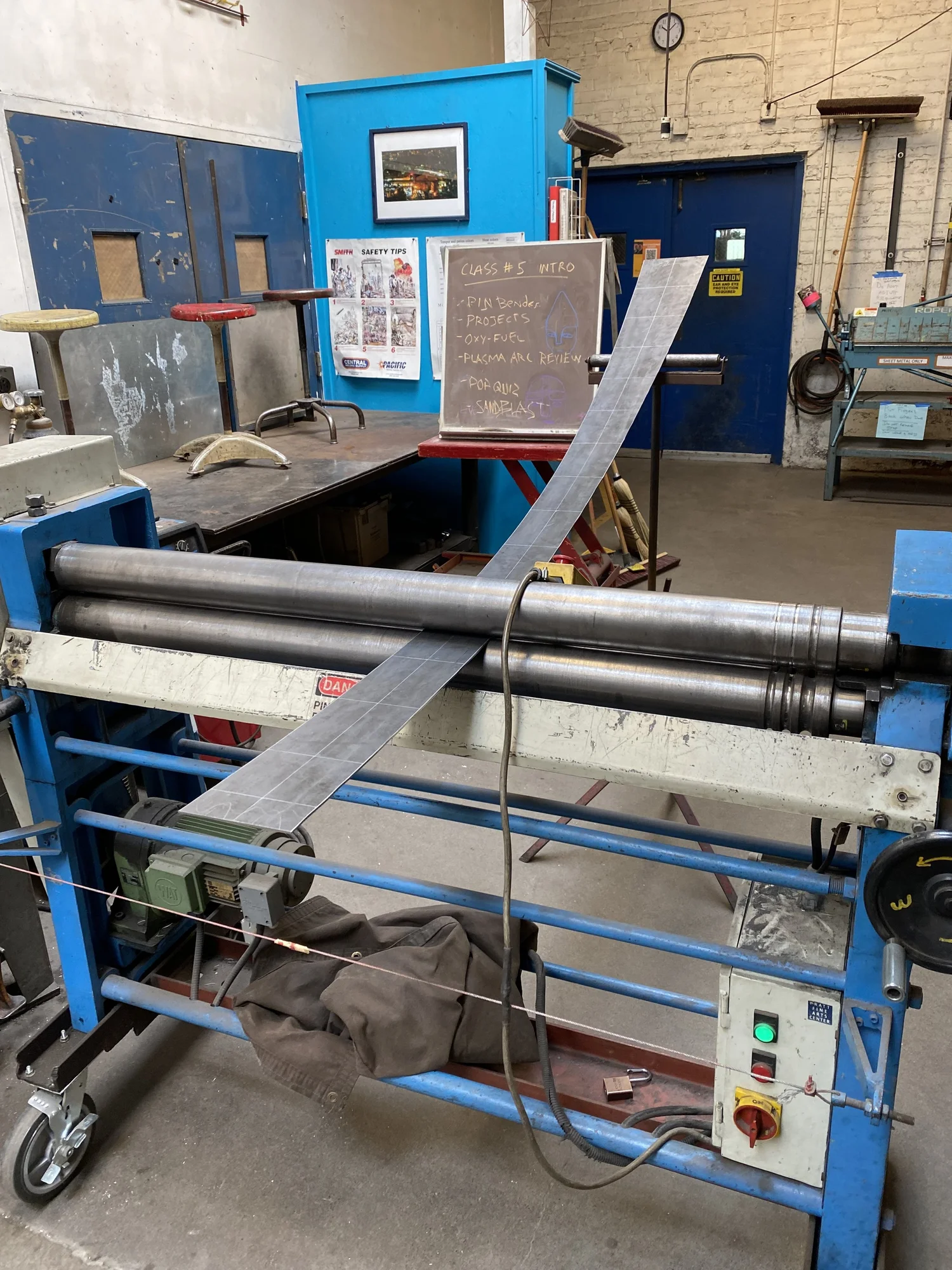

 Rolling the mast panels
 Rolling the small drum wrap
 Rolling the large drum sleeve
 Laying out the footprint on the base

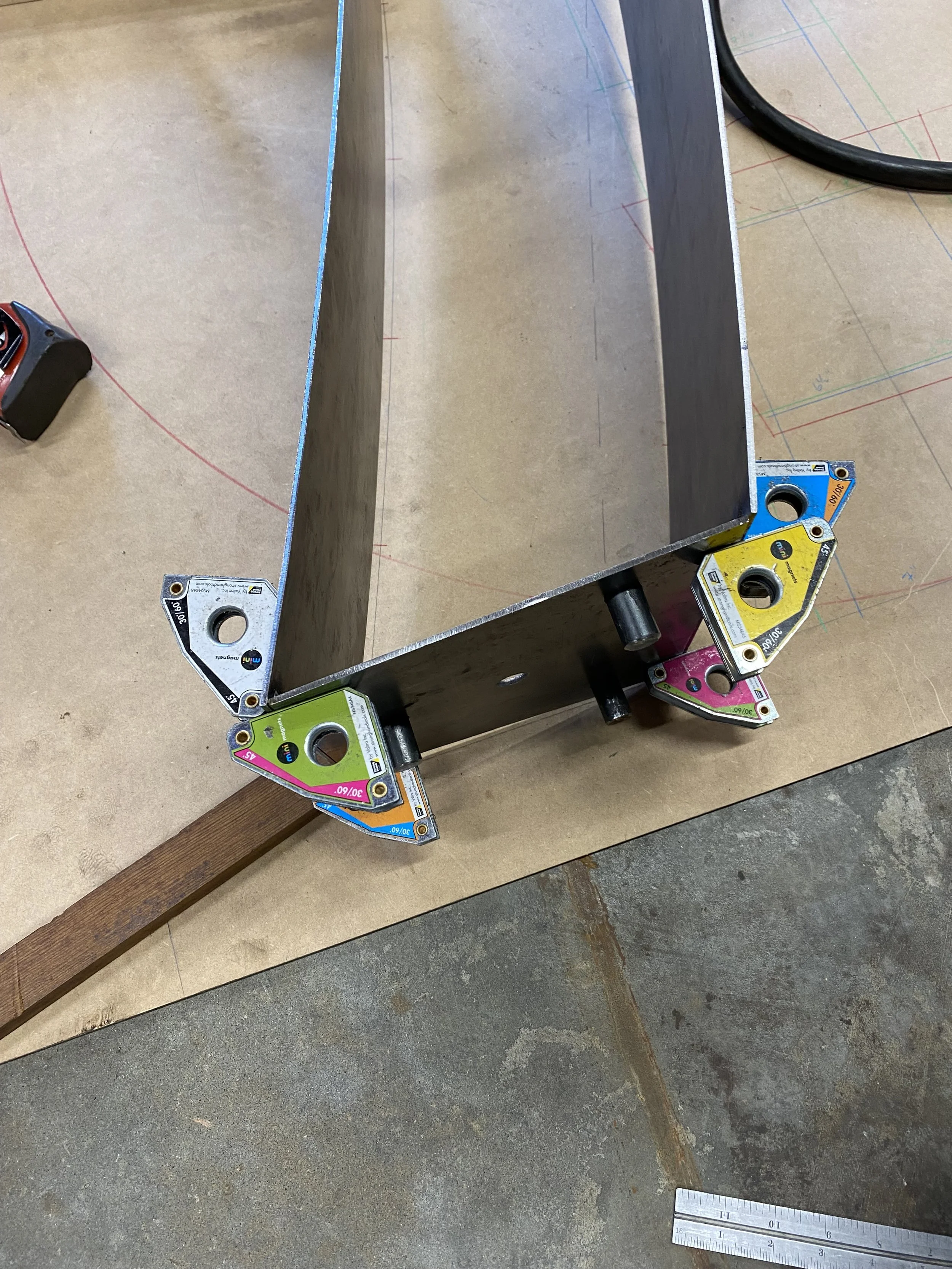

 Assembling the mast
 Machining the base for dowels and weepholes
 Laying out the base cut on the tail piece
 Forming, scribing, and cutting the mast side panels
 Fitting the small drum wrap and sleeve
 Tack welding the mast side panels
 Tack welding the small drum wrap and sleeve
 Welding up the mast
 Rolling the 3” riser for the base
 Assembling the base and internal anchoring ring
 Laying out the coping cut in the mast for the tail piece
 Laying out the top cut on the tail piece prior to weld-up
 Laying out the arc channels for trimming to size and connection machining
 Laying out the drum elements to determine connection points to mast and arc channels
 Piloting thru the arcs to machine for connection dowels
 Scribing, cutting, and tack welding the large drum wrap
 Reinstalling the wrapped drums for connection machining
 Fully welded wrap on the large drum
 Fitting and scribing the sleeve for the large drum
 Sanding out welds
Reworking the base from an internal mounting ring to a top-bolted mounting in order to allow for tubing gussets to be welded underneath the base plate to reduce excessive flexing
Edge detailing on large drum
Final fit-up of components before sandblasting
Installed and ready for field welding

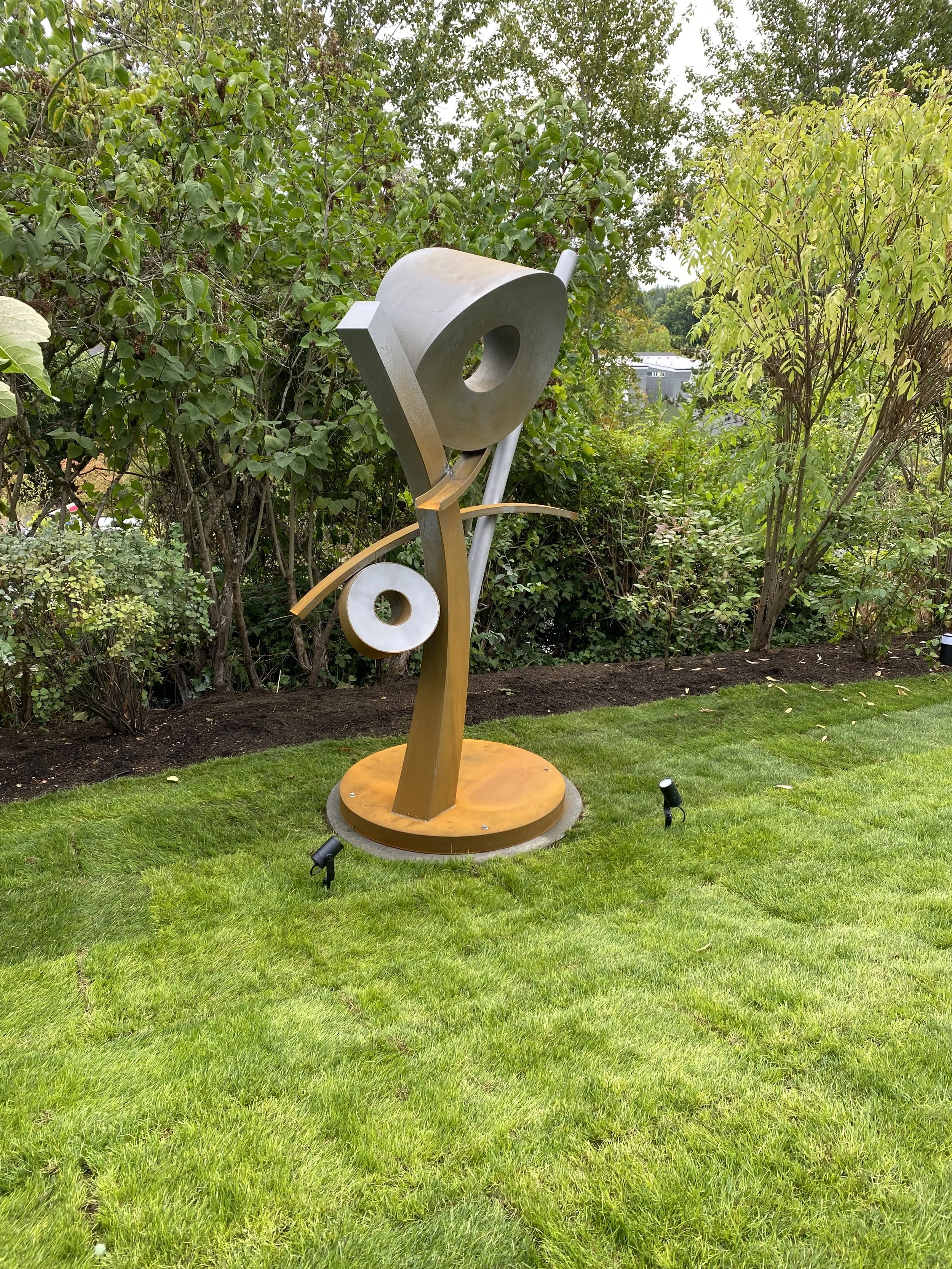

Field welding complete; patination started
